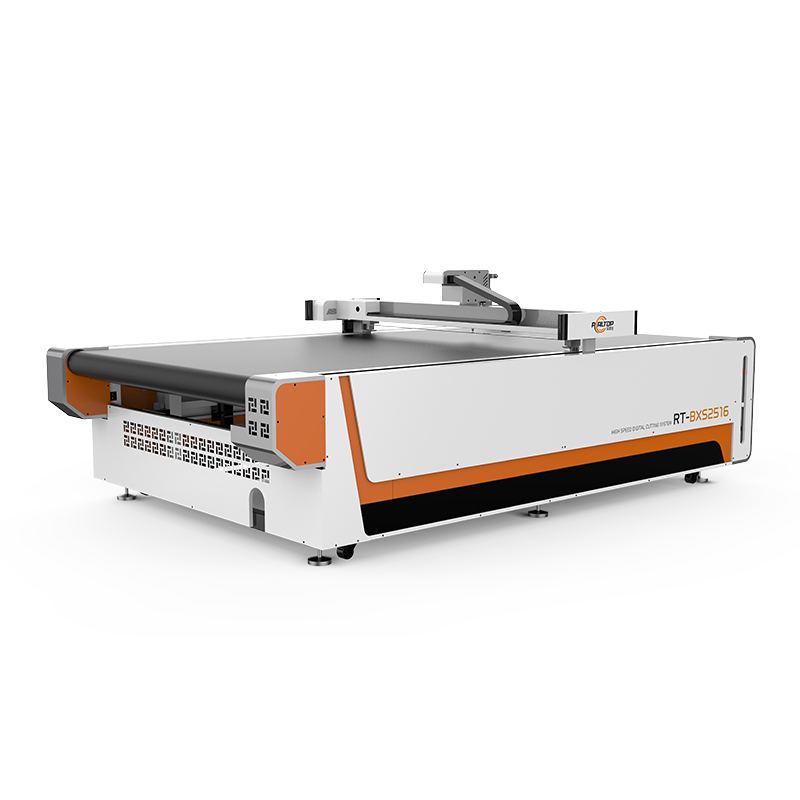

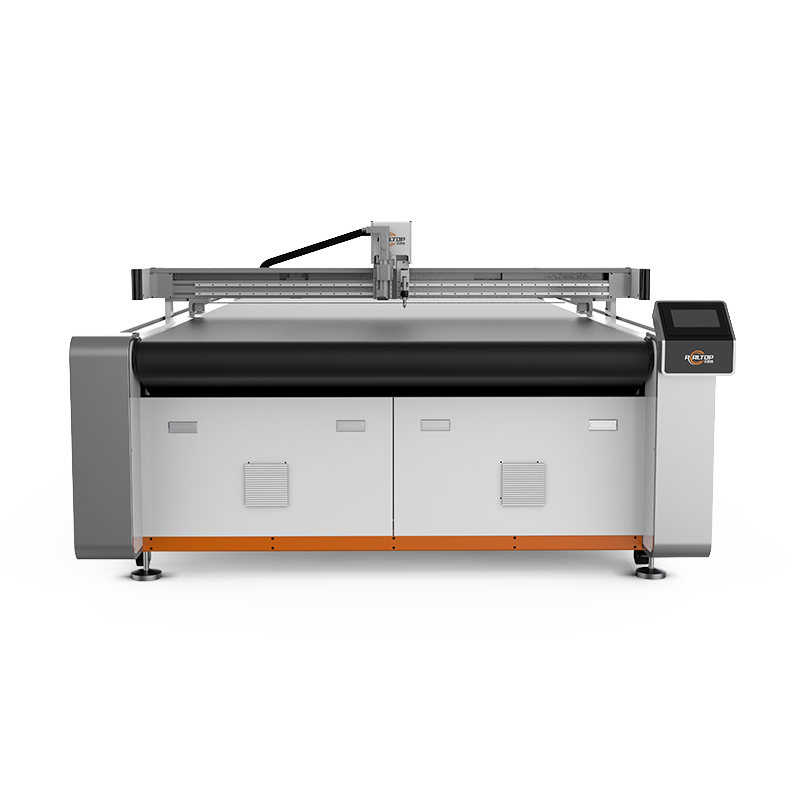

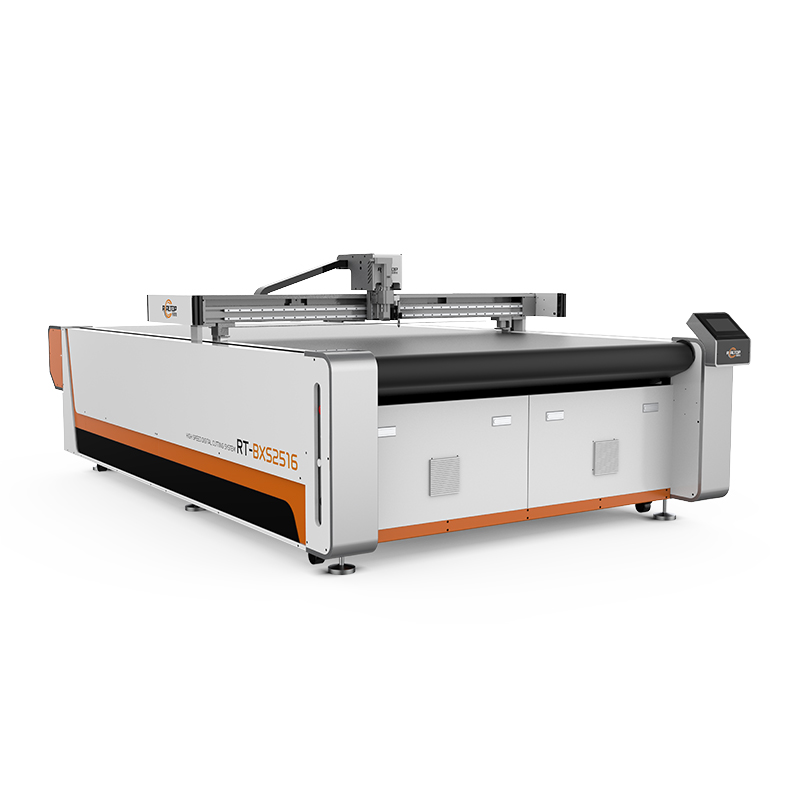

The oscillating knife cutting machine for fabric mainly drives the knife to perform cutting operations through a high-frequency oscillation device. It has high cutting accuracy and fast cutting speed.
Product Introduction:
The vibrating knife cutting machine can cut fabric in single or multiple layers, achieving smooth edges, precise dimensions, and avoiding high temperatures that could damage the fabric. When combined with a camera recognition system or projector and an automatic nesting system, it can identify patterns, quickly arrange layouts, and perform cutting tasks efficiently and rapidly.

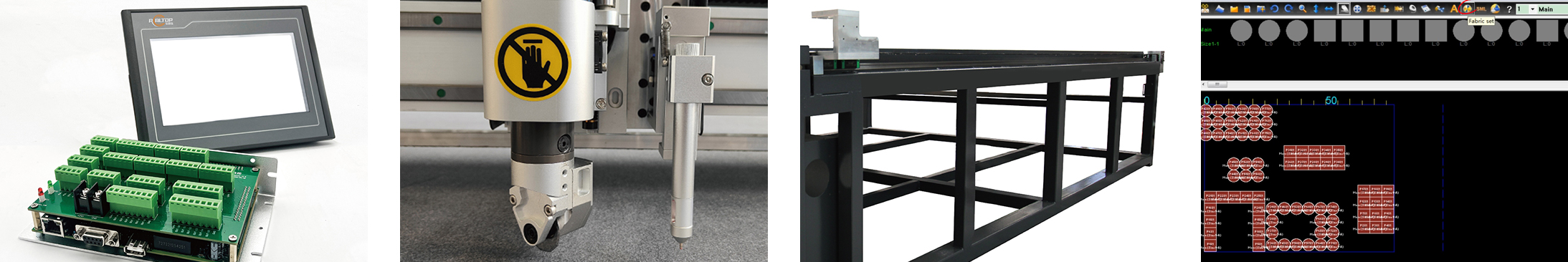

Product Advantage:
● Automatic nesting:According to the customized parameters, this machine can automatically and efficiently generate to the best nesting. And the machine will automatically process the material according to the drawing.
● Safety device:With infrared sensor, the safety device ensures the safety of operator while controlling the machine under the high speed processing.（It is also equipped with an emergency stop switch to ensure safety ）
● The machine uses aluminum honeycomb box to achieve vacuum adsorption, which has the characteristics of high flatness, strong adsorption, lightness and durability.
● Achieve multiple uses of one machine by selecting optional tool head
● High-strength machine frame, stable and durable
● LCD touch screen panel, convenient and easy to operate
Product Parameter:
| Model | 2520 | 2516 | Other Dimensions |
| Effective cutting area | 2500*2000mm | 2500*1600mm | |
| Table type | auto feeding table | ||
| Maximum operating speed | 1500mm/s | ||
| Cutting speed | 10-1000mm/s (depending on material thickness) | ||
| Reset accuracy | ±0.05mm | ||
| Maximum cutting thickness | ≤30mm | ||
| Material fixing method | Vacuum adsorption | ||
| Optional tool | Oscillating knife,round knife, pneumatic knife, servo oscillating knife, punch tool, marking pen | ||
| Data format | dxf, plt, ai, pdf | ||
| Vacuum pump | 2.2KW/7.5KW/9KW | ||
| Voltage | 380V/220V | ||
